Katalogové číslo: 09452819001

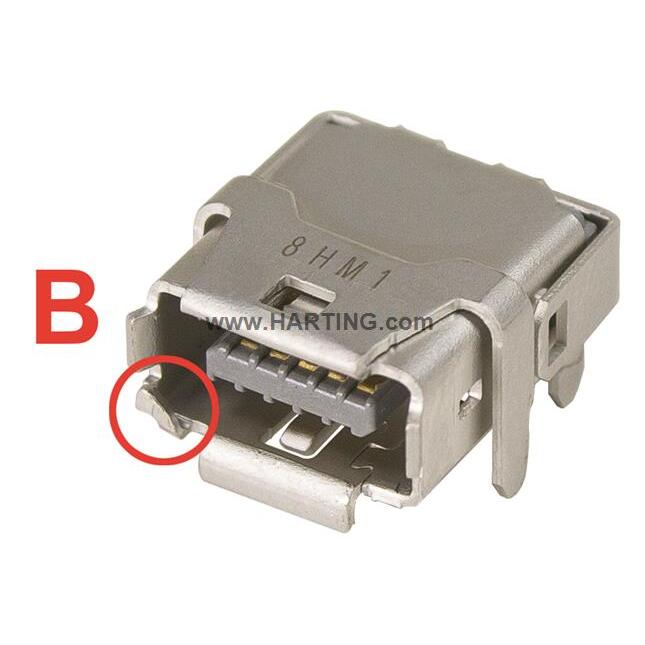

ix Industrial 10B-1 jack AH (T&R550)

Cena za ks

  • Výrobce:
  • Harting

75,80 Kč

Parametry produktu 09452819001:

Series: HARTING ix Industrial®
Element: PCB connector
Termination method: Solder termination
Number of contacts: 10
Rated current: ‌ 1.5 A
Rated current 2: 3 A when used with 4 contacts (1,2,6,7)
Insulation resistance: _500 MΩ
Contact resistance: ≤ 30 mΩ
Limiting temperature: '-40 ... +85 °C
Mating cycles: ≥ 5,000
Test voltage Ur.m.s.: 0.5 kV
Material (insert): Liquid crystal polymer (LCP)
Colour (insert): Grey
Material (contacts): Copper alloy
Surface (contacts): Au over Ni Mating side / Au over Ni Termination side / Sn over Ni Mating side (shielding) / Sn over Ni Termination side (shielding)
Material flammability class acc. to UL 94: V-0
RoHS: compliant
ELV status: compliant
China RoHS: e
REACH Annex XVII substances: Not contained
REACH Annex XIV substances: Not contained
REACH SVHC substances: Not contained
Specifications: IEC 61076-3-124 / EN 45545-2
UL / CSA: UL 1977 ECBT2.E102079 / CSA-C22.2 No. 182.3 ECBT8.E102079
Packaging size: 550
Net weight: 1.52 g
Country of origin: Japan
European customs tariff number: 85366990
GTIN: 5713140223158
eCl@ss: 27460201 PCB connector (board connector)
